GOODMANS GUITAR SPEAKER BROCHURE, 1965

Undated, but proabably 1965. Recommendations on connections, impedance, type of speaker for various applications, and ideal volumes of speaker cabinets.

Click for larger images - in the popup that appears, click on the symbol lower right for a full size image.

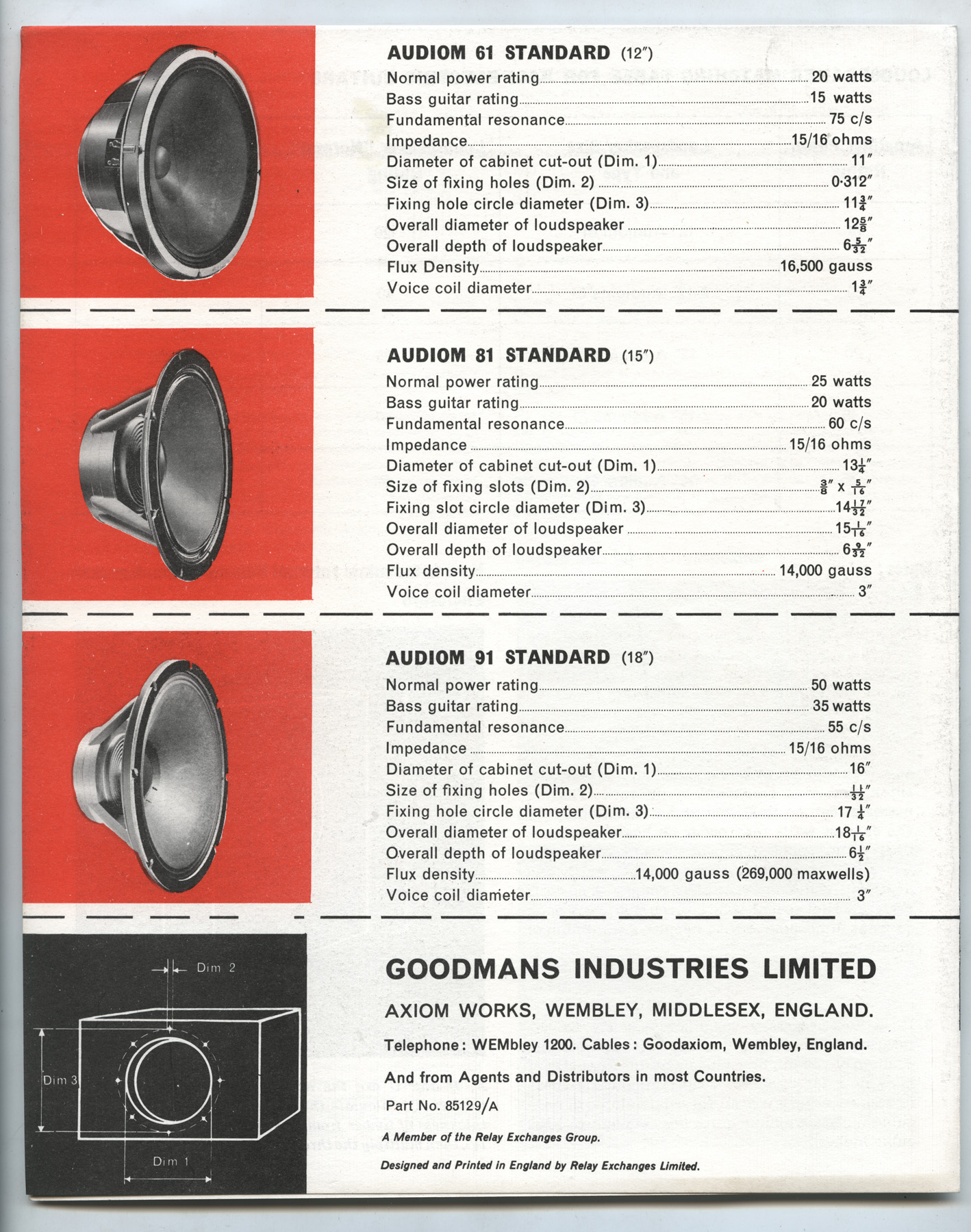

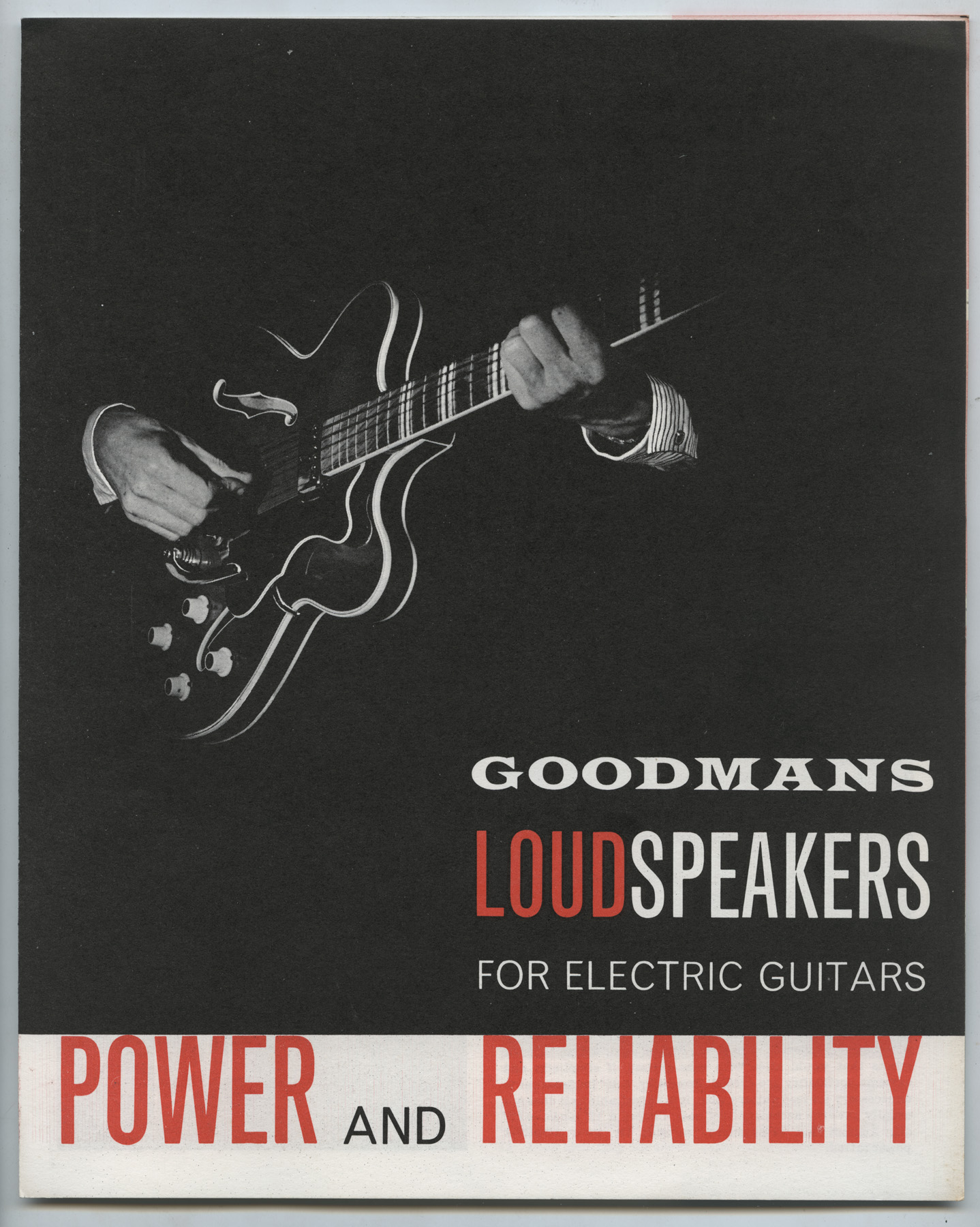

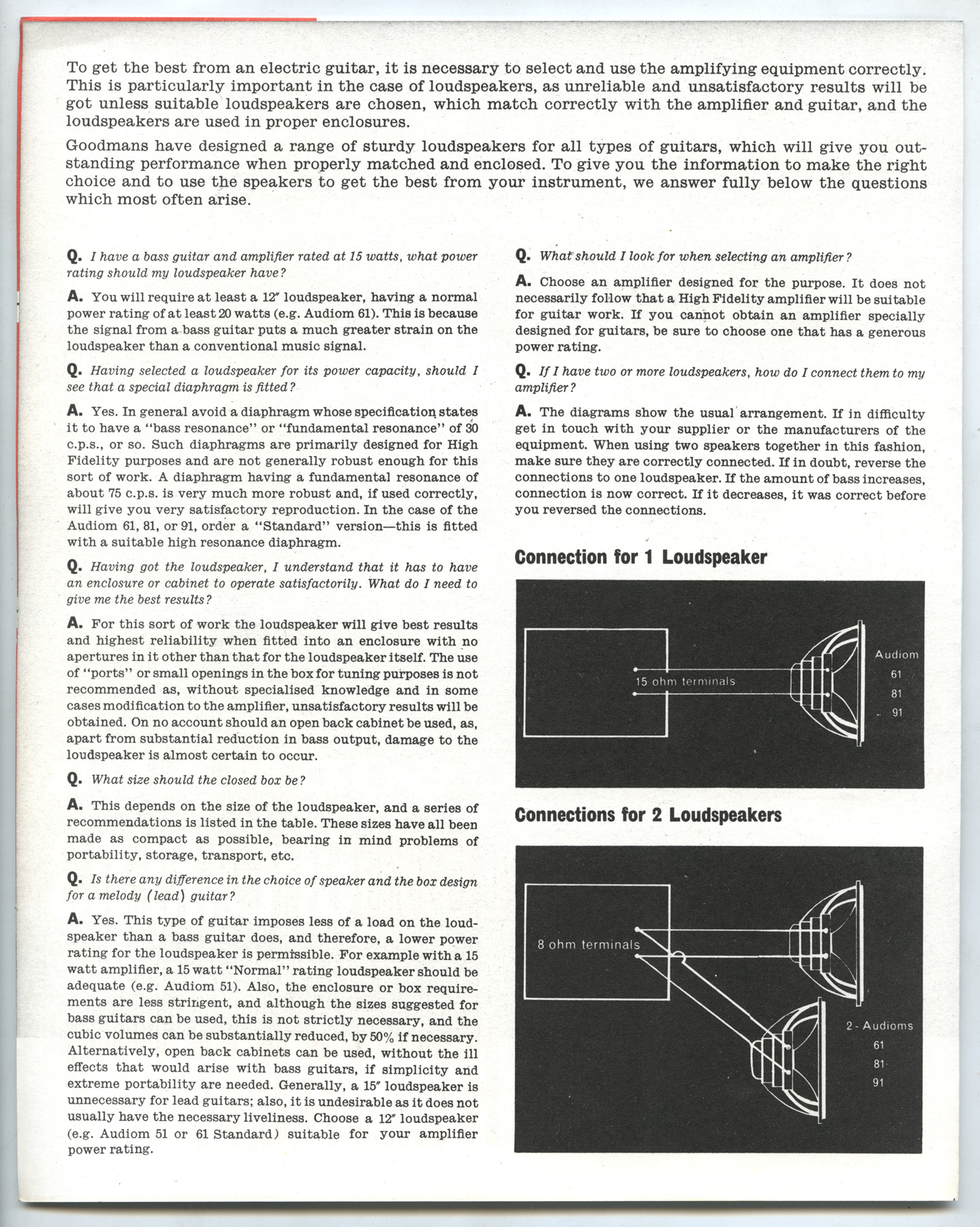

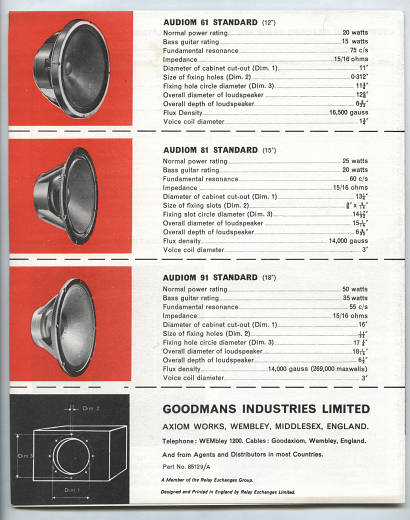

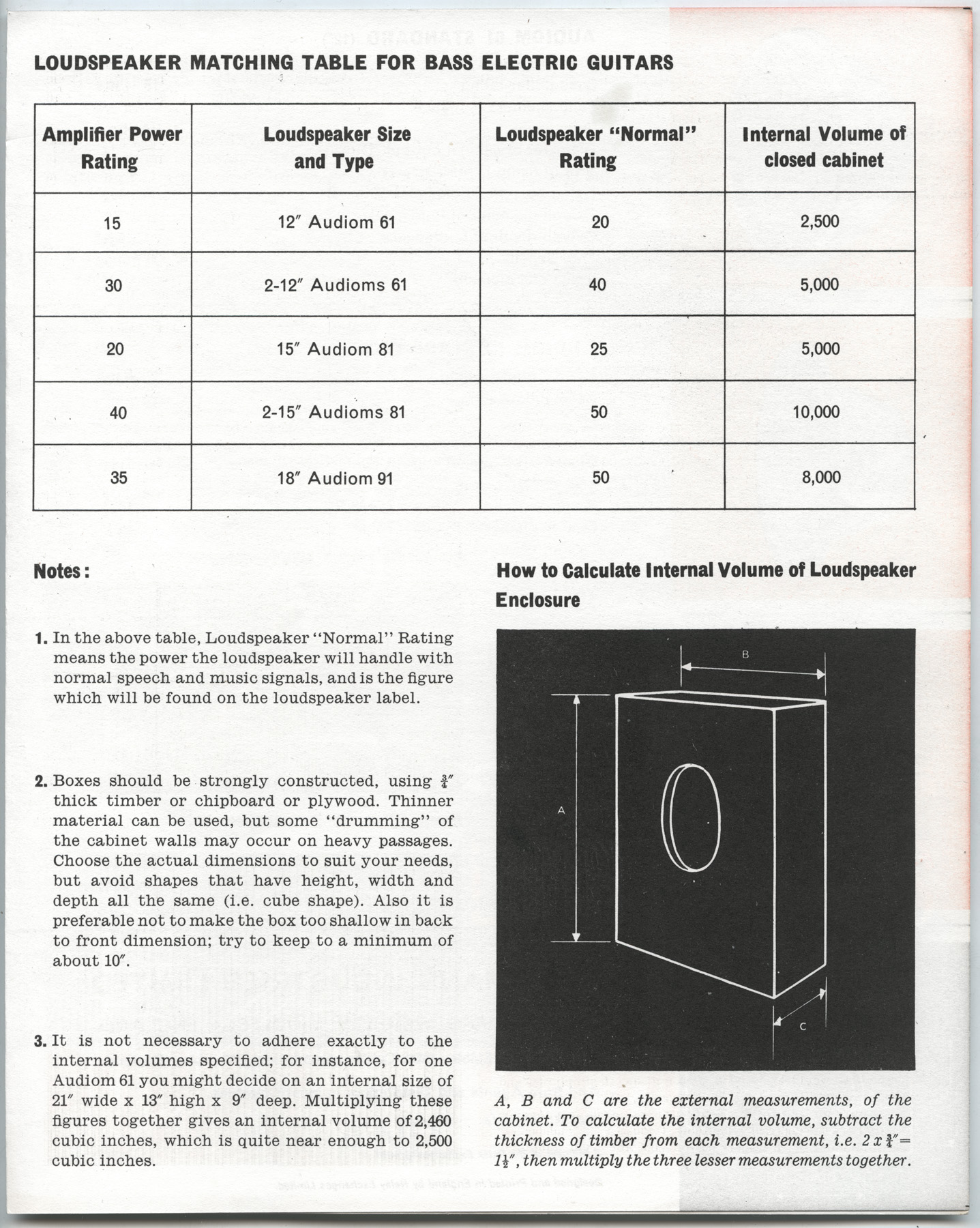

Goodmans brchure, 1965, loudspeakers for guitar and bass
Goodmans brchure, 1965, loudspeakers for guitar and bass
Goodmans brchure, 1965, loudspeakers for guitar and bass
Goodmans brchure, 1965, loudspeakers for guitar and bass
