An early "Vox Sound Limited" AC50 made by Dallas Arbiter, early 1975

Box and cover

The main page on the "Vox Sound Limited" AC50s made by Dallas Arbiter from 1975 to 1976 .

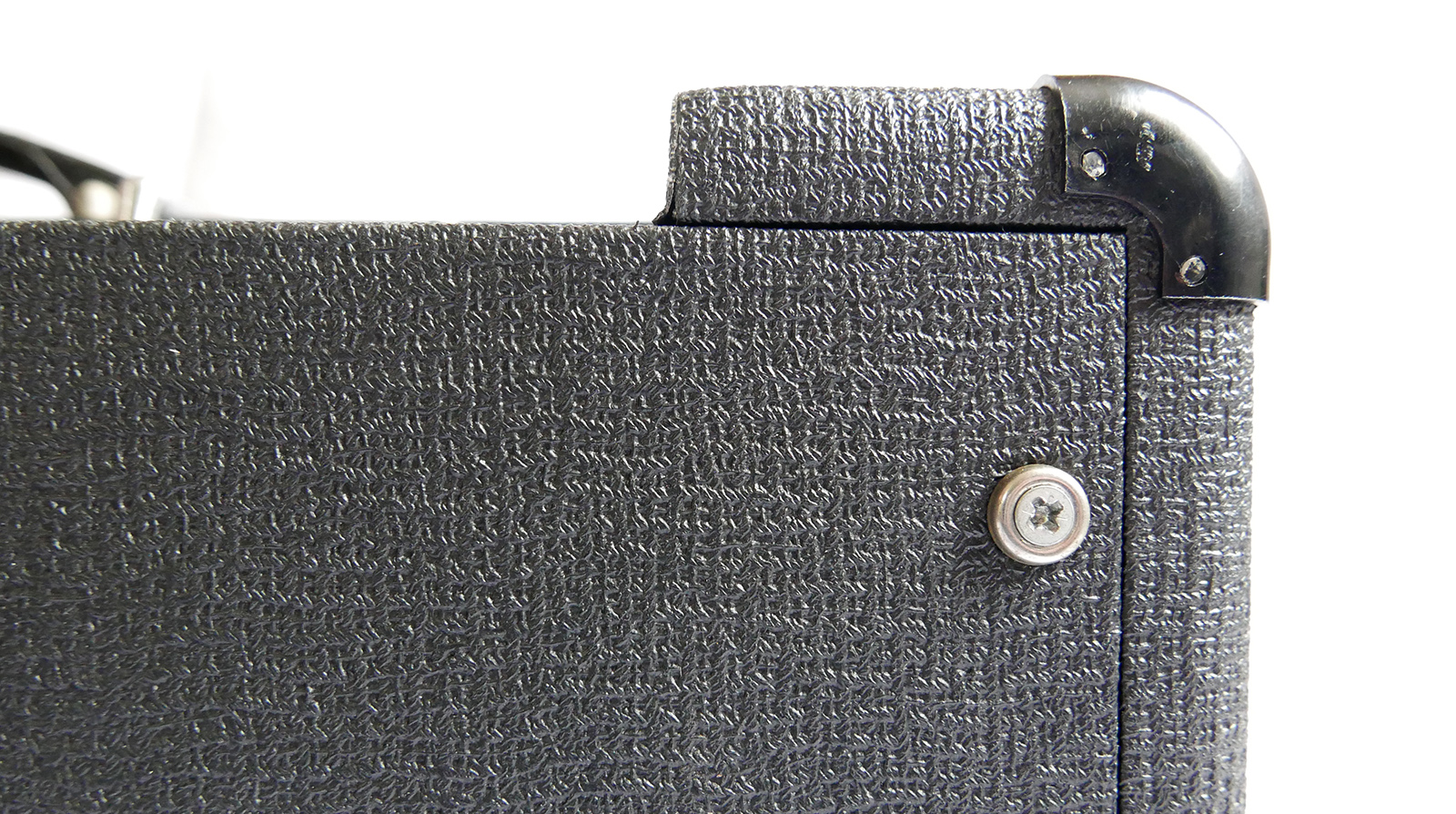

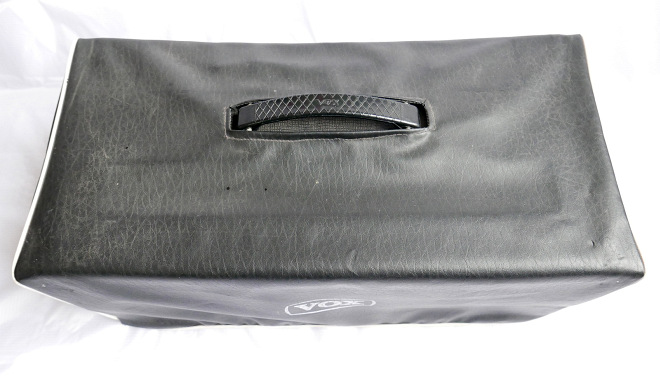

Things to note. The cover is slightly different from earlier AC50 covers, the material having a more pronounced texture, and the interior being smooth black. Corner protectors are plain (ie. they do not have "VOX" imprinted on them). The nuts for the screws that secure the amp to the slider board screws are no longer cage nuts (captive nuts) but are bonded to the chassis.

The warranty card and literature that came with the amp .

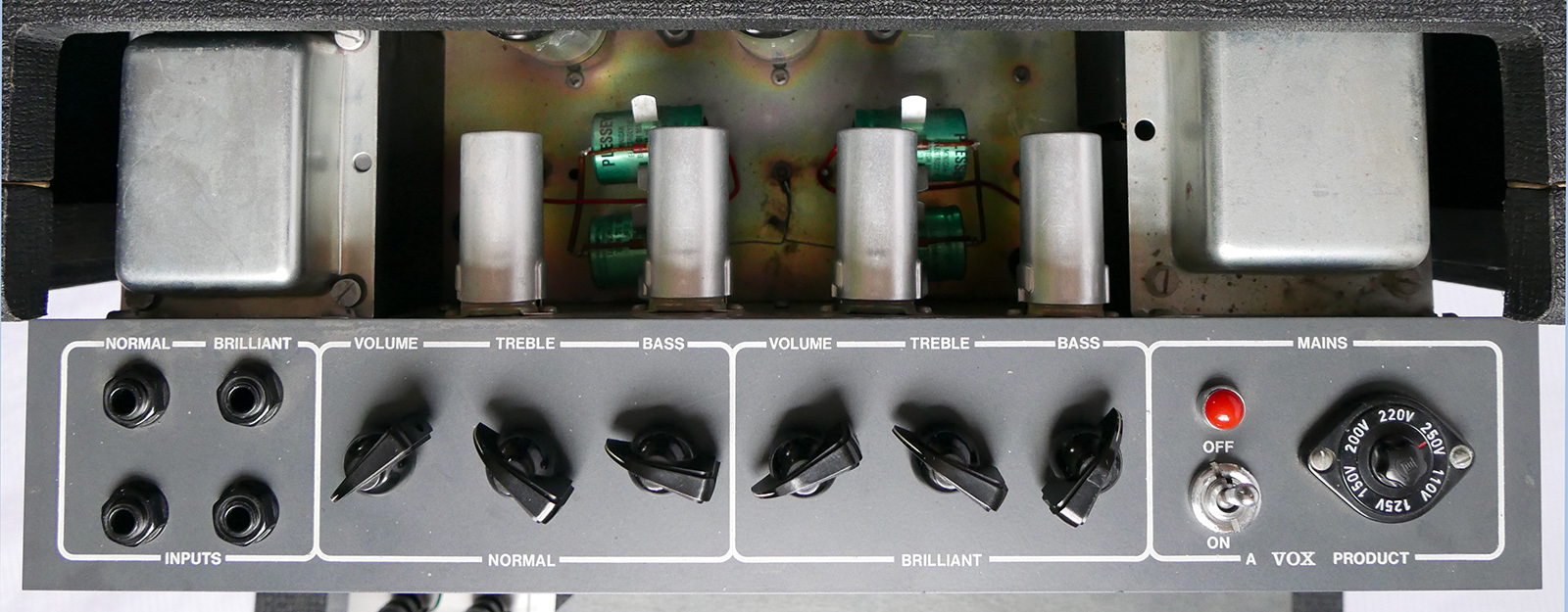

Pictures of the upper chassis and preamp . Details of the underchassis power section to follow.

Click as ever on the thumbnails for larger images, which can be downloaded.
